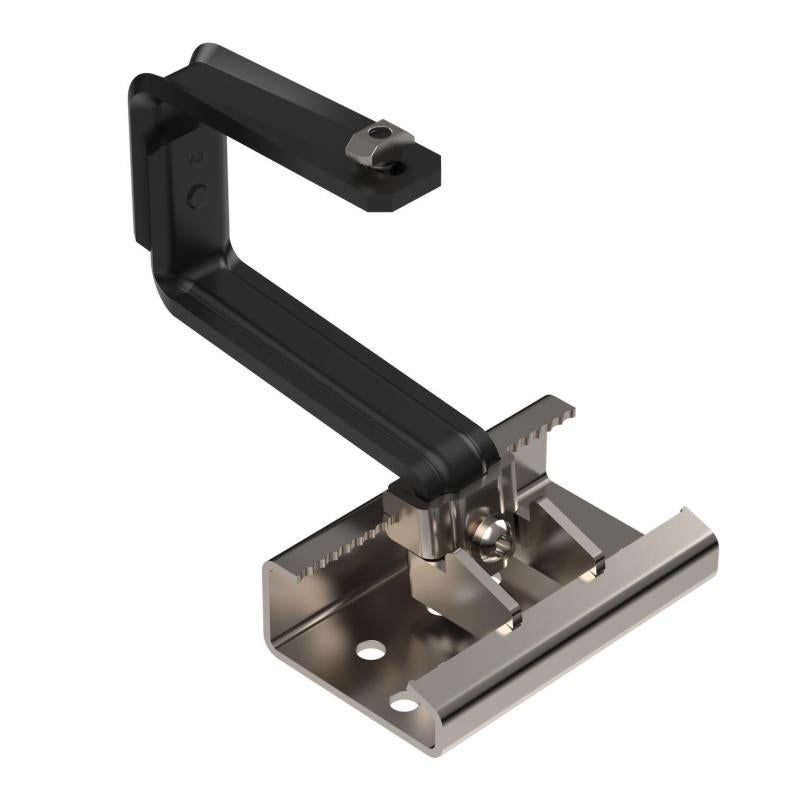

Roof hook for PV module mounting, screwable profile, tiled roof, black
Type DHU T A2K S
Item no. 5901406
EAN 4012197454692
Item no. / Type
Smallest selling unit: 10 Komada
10Komada
Komada
Description
Roof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Screwable fastening on the support profile. Mounting on rafters with TKS wafer-head screws. The roof hook can be adjusted horizontally as well as vertically continuously via glands, correctTorx 40 key. Height adjustment in the range of the roof slat between 40–54 mm, side adjustment option up to 76 mm, height adjustment of the support profile up to 18 mm. Black version.
Technical data

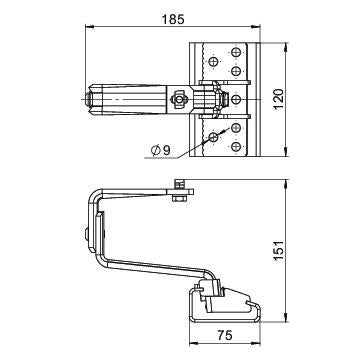

Dimenzije
| Širina | 120 mm |
|---|
Tehnički podaci
| Debljina materijala | 6 mm |
|---|---|
| S montažnom oplatom | da |
| podesivo | da |
| Min. kut nagiba | 90 ° |
| Maks. kut nagiba | 0 ° |
| Sukladno ROHS-u | da |
| Dimenzija | 120x186x150 |
| Površina | plastificirano |
| Materijal | Nehrđajući čelik 1.4301 |
| Boja | crno |
| Prikladno za pričvršćivanje fotonaponskih krovnih/fasadnih pričvršćivanja | Pričvršćenje kosog krova |
| Prikladno za krovni materijal | Crijep |
| Širina pričvrsne pločice | 75 mm |
| Dužina pričvrsne pločice | 120 mm |
| Visina pričvrsne pločice | 36 mm |
| Potrebno probijanje krova | da |
| Poravnanje | horizontalno/vertikalno |
| Sidrenje | pričvrstiti vijkom |
Environmental Data
| Pakiranje u potpunosti od recikliranog kartona | da |
|---|---|
| Pakiranje bez plastike | da |
| CO2 otisak (GWP) od kolijevke do vrata | 3,8887 kg CO2e / 1 Komad |
|---|---|
| CO₂ Footprint (GWP) | 3,8887 kg CO₂e |
| Datum utvrđivanja CO2 vrijednosti | 2025-05-27T00:00:00.000+0200 |
| Declared Unit | Komad |
| Declared Unit Quantity | 1 |
