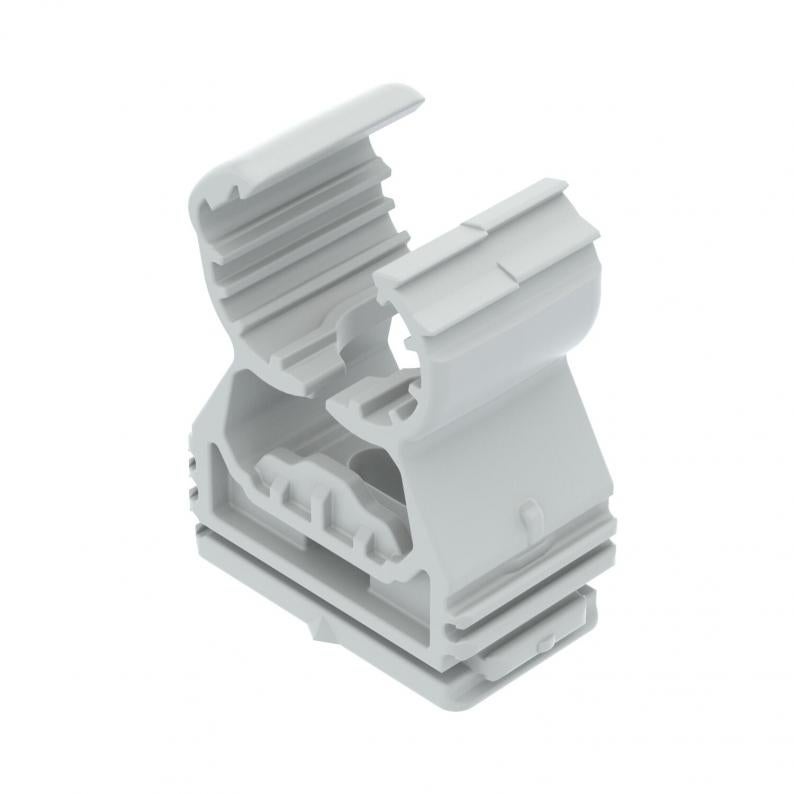

proQuick clip, light grey

Type PQ-10 LGR

Item no. 2147302

EAN 4012197396107

undefined

Show all variants

Item no. / Type

Veličina

Smallest selling unit: 100 Komada

Komada

Description

Highly stressable clip for accepting plastic or metal electrical and sanitary pipes as well as the electrical installation pipe Quick pipe. Universal fastening options on walls, ceilings and steel constructions, both indoors and outdoors. Flexible clamping range of several millimetres. Toolless pipe mounting. Connectable to each other to Ø 28 mm, also with OBO Quick clip or starQuick clip. For variable distances and clip quantity mountable on a profile rail.

Technical data

Tehnički podaci

Veličina	10
bez halogena	da
Otporne na UV zračenje	da
Može se nizati	da
zatvoreno	da
Broj kablova/cijevi	1
Prijelomna sila	0,5 kN
S umetkom	ne
Vrsta pričvršćivanja	Rupa s navojem
Min. promjer cijevi/kabela	9,5 mm
Maks. promjer cijevi/kabela	12 mm
Područje zatezanja D min.	9,5 mm
Područje zatezanja D maks.	12 mm

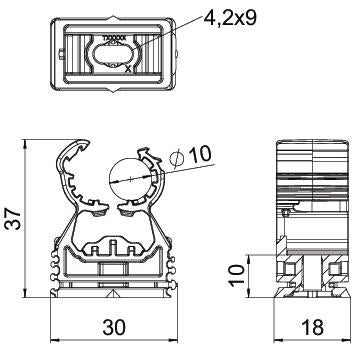

Dimenzija	9,5-12mm
Materijal	Poliamid
Boja	svijetlo siva; RAL 7035

Downloads

0 selected

Podatkovni list (1)

Katalozi i brošure (4)

Izjave (2)

Upute i pomoći (1)

Slike proizvoda (2)

Variants

Veličina

PQ-20 LGR

Item no.

2147310

Veličina

20-23

PQ-40 LGR

Item no.

2147320

Veličina

40-44

PQ-10 LGR

Item no.

2147302

Veličina

PQ-12 LGR

Item no.

2147304

Veličina

12-14

PQ-15 LGR

Item no.

2147306

Veličina

15-16

PQ-17 LGR

Item no.

2147308

Veličina

17-19

PQ-25 LGR

Item no.

2147312

Veličina

25-28

PQ-28 LGR

Item no.

2147314

Veličina

28-32

PQ-32 LGR

Item no.

2147316

Veličina

32-35

PQ-36 LGR

Item no.

2147318

Veličina

35-40

PQ-47 LGR

Item no.

2147324

Veličina

45-50

PQ-51 LGR

Item no.

2147326

Veličina

50-54

PQ-59 LGR

Item no.

2147328

Veličina

59-65
