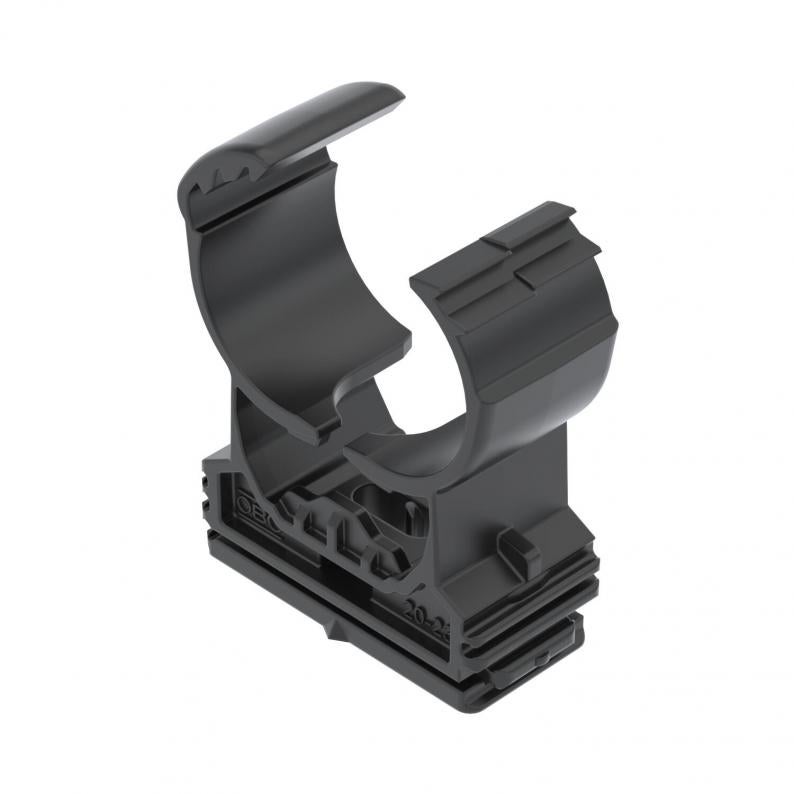

proQuick clip, jet black
Type PQ-20 SW
|Item no. 2147340
|EAN 4012197395940
Item no. / Type
2147340 / PQ-20 SW
Veličina
20-23
Smallest selling unit: 50 Komada
50Komada
Komada
Description
Highly stressable clip for accepting plastic or metal electrical and sanitary pipes as well as the electrical installation pipe Quick pipe. Universal fastening options on walls, ceilings and steel constructions, both indoors and outdoors. Flexible clamping range of several millimetres. Toolless pipe mounting. Connectable to each other to Ø 32 mm, also with the OBO Quick or Multi Quick clip. For variable distances and clip quantity mountable on a profile rail.
Technical data
Tehnički podaci
| Veličina | 20-23 |
|---|---|
| bez halogena | da |
| Otporne na UV zračenje | da |
| Može se nizati | da |
| zatvoreno | da |
| Broj kablova/cijevi | 1 |
| Prijelomna sila | 0,8 kN |
| S umetkom | ne |
| Vrsta pričvršćivanja | Rupa s navojem |
| Min. promjer cijevi/kabela | 19,5 mm |
| Maks. promjer cijevi/kabela | 23,5 mm |
| Područje zatezanja D min. | 19,5 mm |
| Područje zatezanja D maks. | 23,5 mm |
| Dimenzija | 19,5-23,5mm |
| Materijal | Poliamid |
| Boja | tamno crna; RAL 9005 |
